BULGARIA
Rousse 7004, 89 Pliska Str., bl."Aheloi"-1, vh.J, et.2, ap.3
Georgi Andreev Stoianov
phone 00359-82-45-42-41, fax 00359-82-22-28-22
Iambol, phone 00359-46-48-600, fax 00359-46-63-457 - Zdravko Zahariev
podem@infotech.bg

Machine for mechanized seed removing from the pepper

Technologic line for seed removing, placement (A), baking and peeling of pepper
      The machine is intended for the canning industry, for removing the seeds from the pepper, which is used for roasting, sousing, as well as for general use. All the stalks, seeds and veins are removed from the pepper, no matter what its form, length or diameter are.
      The productivity of the machine is from 80 to 120 kg per hour, depending on the massiveness of the pepper. The machine is suitable for manipulating frozen pepper as well.
      The machine is a novelty in the canning industry. It is furnished with an electric motor and  is mounted as a table machine with two bolts - M6, that makes it suitable not only for the canning industry, but also for the dining rooms in the companies, for commerce and resort centers, and for the households as well.

      The machine is tested in the conditions of production and 20 machines are already working successfully in the factories in our country.
      I am willing to concede the exclusive license through a licensing contract to those, who want to buy the license of the machine and the working and the constructive documentation. The price is negotiable and will be set in the process of the business talks.
     Please, contact me at the above address if you are interested in buying the license.

     The machine is declared as an invention and a certificate for copyright is going to be issued. The author is MSc Georgi Andreev Stoianov from Rousse, Bulgaria.

TECHNICAL DATA



N

Names of the major indices

Value

1. Productivity in number of peppers 26-30 per min
2. Operating the machine: 1 person
3. Dimensions:
- length
- width
- height

410 mm
205 mm
280 mm
4. Installed capacity 0.180 kW
5. Weight of the machine, including the electric motor: 14 kg

The author has also invented a Technologic line for seed removing, placement (A), baking and peeling of pepper on a full automatic regime. For contacts podem@infotech.bg

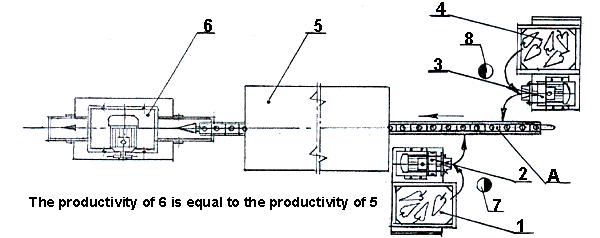

Technologic line for seed removing, placement (A), baking and peeling of pepper

1, 4 Crates full with pepper
2,3 Machines for mechanised seed removing
5 Tunnel oven for baking of pepper
6 Machine for peeling of pepper on a full automatic regime
7,8 Personnel - loads linkwork A and cleans


Another invention: Machine for building cement (cylindrical) ovens
